Metal random packings

Thanks to its comprehensive supply program of random packing types and materials plus decades of experience in thermal mass-separation processes such as absorption, desorption, rectification etc. VFF can provide a tailored solution for practically all operating conditions and/or gas-liquid compositions.

On request our VFF product specialist can select the appropriate tower packing for your specific requirements in a suitable material and optimum size.

Our VFF-Team can also provide you with the latest high-performance random packing VFF-Twin-Pak® whose outstanding performance can significantly optimise your process.

In order to guarantee high quality, VFF places a lot of emphasis on the fact that its products are “100% Made in Germany”.

(C-steel, stainless steels, aluminium, copper, nickel, hastelloy, incoloy, inconel, monel, - and much more.)

Physical parameters: Metal random packings



DescriptionNominal sizeSpec. weight*
[kg/m³]
Spec. surface
[m²/m³]
Free volume
[%]

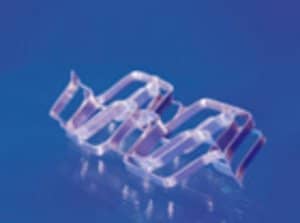

VFF-Twin-Pak®
VFF-Twin-Pak No.1 200 200 97
No. 1.25 170 160 98
No. 1.5 150 135 98
No.2 150 100 98
No.3 140 70 98

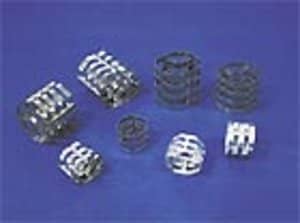

VSP®
25 mm 180 205 98
40 mm 170 132 98
50 mm 190 110 98

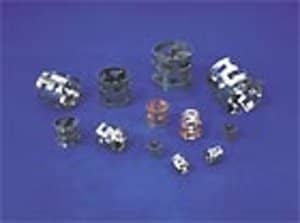

Pall®-Ring
15 mm 380 360 95
25 mm 360 210 95
38 mm 250 136 96
50 mm 190 105 97
80 mm 200 80 96
90 mm 185 65 98

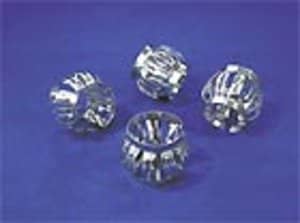

Top-Pak®
#2 160 80 98

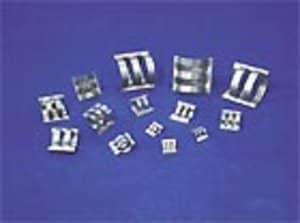

Interpack®
#1 (10mm) 600 620 92
#2 (15mm) 360 360 96
#3 (20mm) 380 260 96

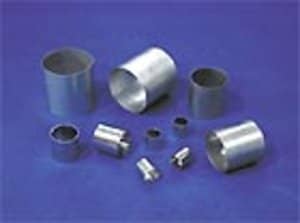

Cylindrical rings
15 mm 380 360 95
25 mm 360 210 95
38 mm 250 136 96
50 mm 190 105 97

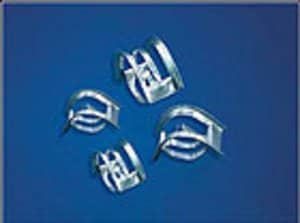

Novalox®-M
15 mm 360 290 96
25 mm 340 230 97
40 mm 230 150 98
50 mm 160 100 98
60 mm 140 85 98
70 mm 120 60 98

*All details relate to material 1.4301 and to standard wall thicknesses for the respective sizes. Other wall thicknesses: on request; available materials: C-steel, stainless steels, special alloys

Subject to technical modifications. All details serve for preliminary information purposes only. Claims cannot be derived therefrom. Specification sheets are available on request.

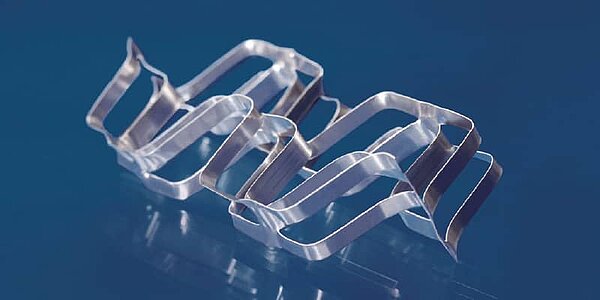

VFF-Twin-Pak®

From the decades of cooperation with our customers and the intense involvement in the product, VFF can fall back on comprehensive know-how, which formed the basis of the completely new development of the VFF-Twin-Pak®, a modern high-performance metal random packing. The VFF-Twin-Pak® was developed for a circle of customers with highest demands and offers an extremely low pressure drop with the best possible mass transfer! The new VFF-Twin-Pak® is characterised by highest capacity and an excellent stability at great filling heights.



Extremely low pressure drop with best mass transfer

The VFF Twin-Pak®, a VFF-patent, is a completely newly designed high-performance random packing in metal with a similar profile to structured packings but which retains all the many benefits of random packings. Its form combines an extremely low pressure drop with a convincing mass transfer! VFF-Twin-Pak® is a high-performance random packing designed for maximum throughput capacity. Compared with a conventional random packing with an equivalent rated value the mass transfer of the new VFF Twin-Pak® is substantially better. The specific pressure drop of the VFF Twin-Pak® is not even a third of the level of a comparable random packing. In other words: The VFF Twin-Pak® offers optimum throughput capacity with significant cost savings! VFF Twin-Pak® - Benefits at a glance





Benefits at a glance

The VFF Twin-Pak®, a VFF-patent, is a completely newly designed high-performance random packing in metal with a similar profile to structured packings but which retains all the many benefits of random packings. Its form combines an extremely low pressure drop with a convincing mass transfer!

VFF-Twin-Pak® is a high-performance random packing designed for maximum throughput capacity. Compared with a conventional random packing with an equivalent rated value the mass transfer of the new VFF Twin-Pak® is substantially better. The specific pressure drop of the VFF Twin-Pak® is not even a third of the level of a comparable random packing. In other words: The VFF Twin-Pak® offers optimum throughput capacity with significant cost savings!



By means of the new manufacturing method developed by VFF and its special design, the VFF-TWIN-PAK® can convince by a high degree of design-related mechanical stability. This allows the trouble-free realisation of a great filling height in a single bed at a low weight.

(see also table: VFF Twin-Pak® Specific data)





When the VFF-Twin-Pak® was designed, priority was placed on the demands of the VFF customers on a high-performance random packing. Therefore, when it came to the manufacturing method, attention was paid that the customer is provided with a random packing individually tailored to his requirements. VFF-Twin-Pak® is not only available in a universal standard version, it is also supplied in a wide range of materials or wall thickness. Whether as a featherweight or extremely strong version, whether carbon steel or special alloys - with the VFF-Twin-Pak®, the customer always receives the tower packing that is perfectly suited to his application. The VFF-Twin-Pak® is individually available from 0.2 mm to 0.6 mm or in the standard wall thicknesses. An advantage that also pays off for all customers!

(see also table: VFF Twin-Pak® Specific data)



The VFF-Twin-Pak® offers highest throughput capacity ... at a fair price! This was only able to be realised by intense involvement with new geometries and by the new manufacturing methods developed by VFF. This modern high-performance random packing combines an extremely low pressure drop with a convincing mass transfer! In other words: Highest throughput capacity while clearly saving costs!



The quality of the VFF-Twin-Pak® and all other VFF products is ensured due to internal test benches and external inspections carried out by renowned, independent institutes within the framework of the certification acc. to DIN EN ISO 9001.



As the largest manufacturer of tower packings and inert balls in Europe, VFF is in a position to react to customer inquiries within a very short time. This saves the customer long lead times and storage costs. Individual wishes (e.g. packaging) can be realised by VFF at any time. Particularly where a contract exists with the customer, VFF is able to guarantee appropriate quantities being available at call in the desired packaging.
